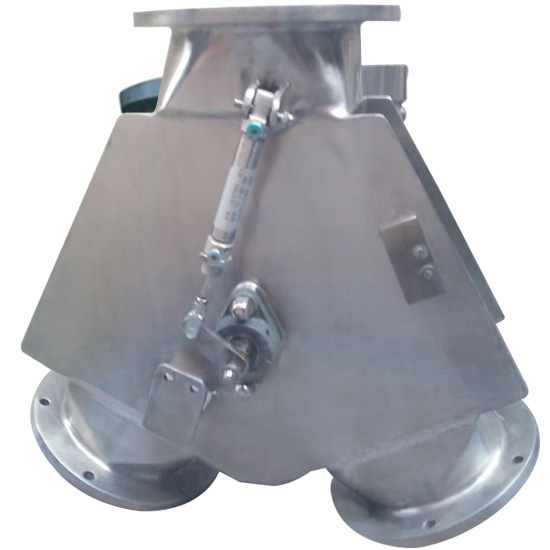

Flap Type Gravity Diverter Valve
Application:
Gravity Diverter Valves are employed for dry powder gravity flow applications for dosing and discharge purposes. Unique design with a blade pocket protects the leading edge of the blade from wear, which prevents leakage of the powdered material. Easy access is also provided with an inspection window available as an option.
Salient Features:
- Fabricated Stainless steel and Mild steel construction.
- Square to round transitions available
- Sizes ranging from 6” to 30”
- 45°, 60° & 90° diverter angles
- 2-way & 3-way type valve available
- Option of single acting or double acting solenoid.
- Powerful linear pneumatic actuator
- Pre-wired terminal box
- Minimum leakage
- Minimum maintenance

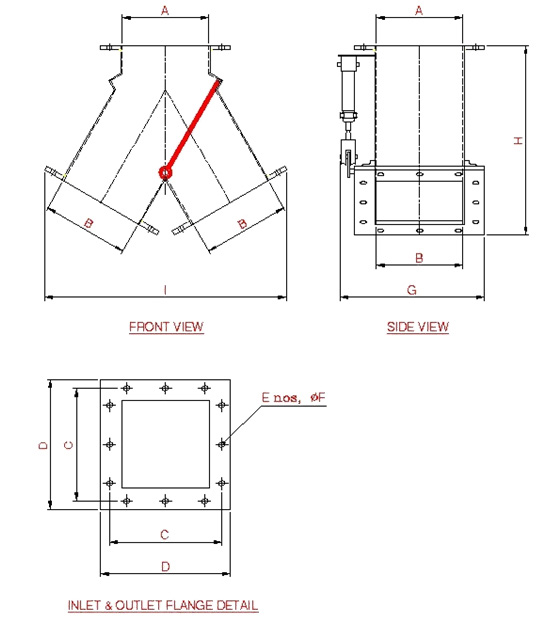

| DIM | SIZE OF VALVEIN 60° | |||
|---|---|---|---|---|
| 150 | 200 | 250 | 300 | |
| A | 152 | 200 | 250 | 300 |
| B | 152 | 200 | 250 | 300 |
| C | 210 | 260 | 300 | 348 |
| D | 250 | 300 | 340 | 400 |
| E | 12 NOS | 12 NOS | 12 NOS | 12 NOS |
| F | 12 | 14 | 14 | 14 |
| G | 285 | 345 | 395 | 450 |
| H | 380 | 445 | 500 | 600 |
| I | 477 | 560 | 629 | 750 |
