Y-Type Diverter Valve Wear Resistant
Application:
Two way Wear Resistant valves are used in pneumatic transport of powder and granular material to divert solids flowing in dense phase as well as lean phase into two pipelines. The wear resistant construction is provided for applications involving abrasive solids.
Salient Features:

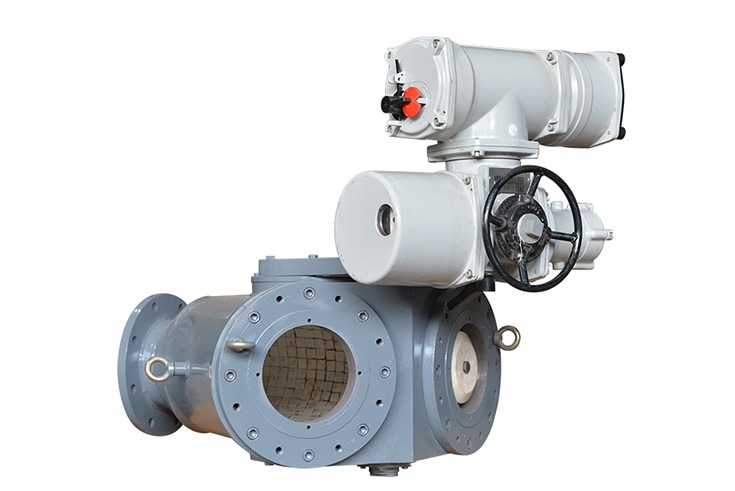

- Cast Iron body
- Distribution of conveying stream is achieved by a swivel throw-arm using a powerful rotary pneumatic actuator or Electrical actuators
- Ceramic lining provided on the inside
- Sealing using silicon rubber mounted on the swivel throw-arm
- Max working temperature of 120°C
- Max system pressure of 6 bar g
- Minimum maintenance and Highly Durable

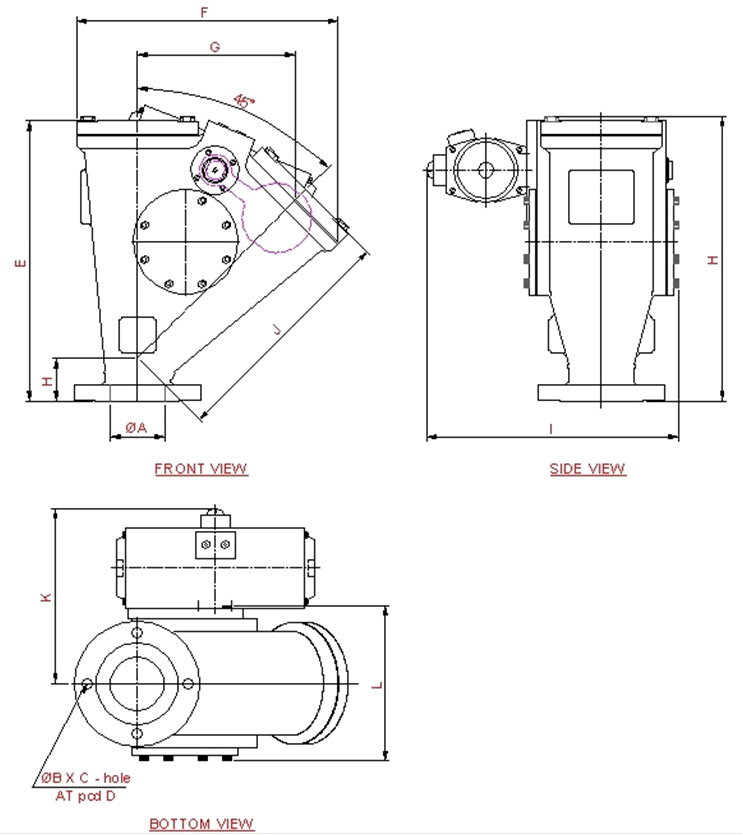

| DIM | WR 80 | WR 100 | WR 150 |
|---|---|---|---|
| A | 80 | 102 | 158 |
| B | 19 | 19 | 19 |
| C | 4 | 8 | 8 |
| D | 152.5 | 190.5 | 241.5 |
| E | 423 | 527 | 627 |
| F | 410 | 510 | 607 |
| G | 254 | 316 | 366 |
| H | 65 | 80 | 140 |
| I | 361 | 455 | 535 |
| J | 359 | 447 | 517 |
| K | 219 | 275 | 377 |
| L | 195 | 245 | 315 |
